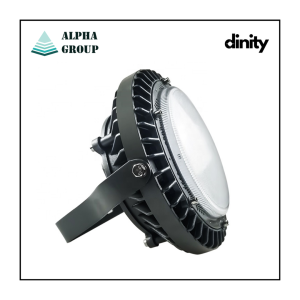

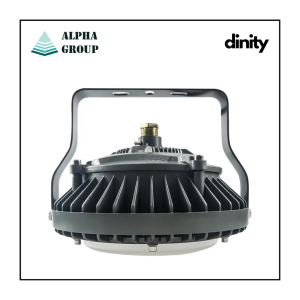

BAT95R5 (80) Series LED Explosion Proof Light
Description Product

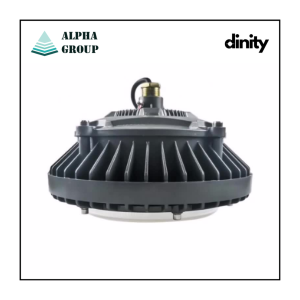

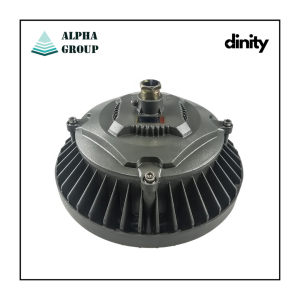

- The radiator adopts up and down ventilation convection, and the outer circumference array heat sink design avoids the phenomenon that the conventional LED radiator will accumulate dust.

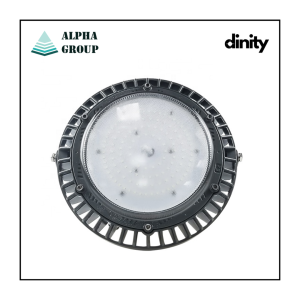

- The anti-glare PC transparent part has a honeycomb-shaped crystallizationpoint on the surface, so that the light is uniform
without shadow and anti-glare.
- Adopting high-energy-saving LED light source, imported light source, green and environmental protection, with low energy consumption, long life and maintenance-free;
Spesification
| Model |
Power |
Product Size(mm) |
Wight |
| H |
L |
W |
| BAT95R5 |
80/100/120W |
240 |
306 |
306 |
4.8 |
Technical Parameters
| Product Power |
: |
80~120W |
| Input Voltage |
: |
85-265V |
| Frequency |
: |
50~60Hz |
| Power Factor |
: |
0.95 |
| LED Chip Brand |
: |
Lumileds |
| Ex-mark |
: |
Ex de IIC T6 Gb |
| IP Rating |
: |
IP65/IP66 |
| Protection Grade |
: |
WF2 |
| CRI |
: |
Ra>85 |
| Light Efficiency |
: |
≥120lm/W |
| Ambient Temp |
: |
-55°C~+60°C |
| Service Life |
: |
>50000H |
