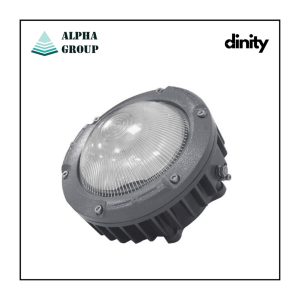

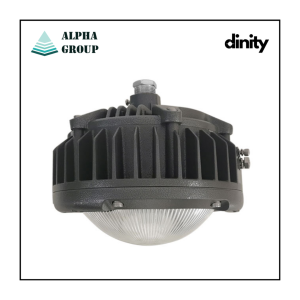

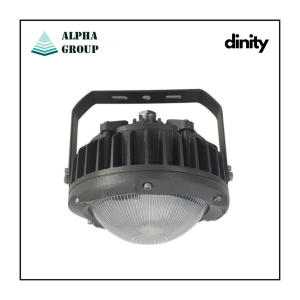

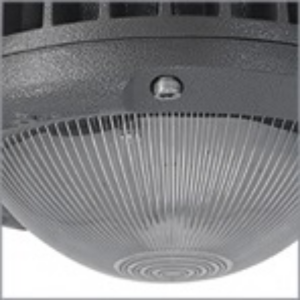

BAT95R4 (30) Series LED Explosion Proof Light

Description Product

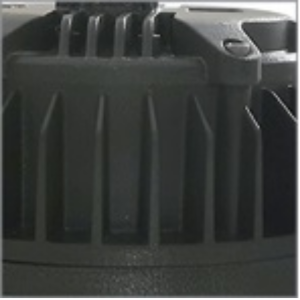

  • The heat sink adopts a circular array heat sink, so that the temperature of the light source surface is quickly transmitted outward, so that the temperature of the LED chip is uniform;

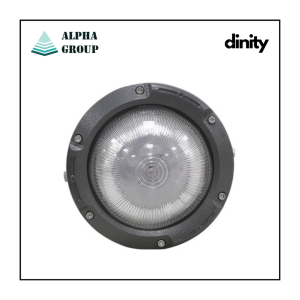

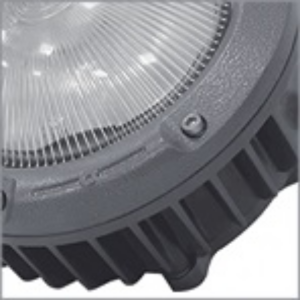

  • The diffused anti-glare transparent parts adopts frosted
    tempered glass, which has high toughened purity, strong resistance;

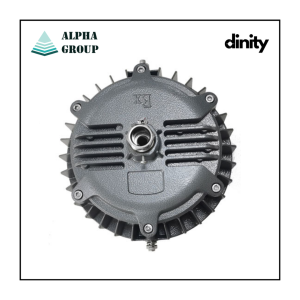

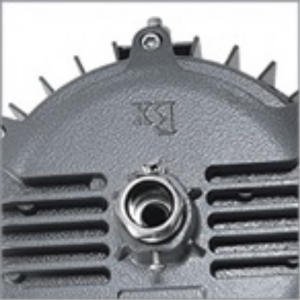

  • The lamp adopts G3/4 thread to to prevent loose and waterproof.
  • Adopting high-energy-saving LED light source, imported light source, green and environmental protection,with the advantages
    of low energy consumption, long life, maintenance free, etc.

Spesification

Model Power Product Size(mm) Wight
H L W
BAT95R4 30~80W 230 270 270 4.3

Technical Parameters

Product Power : 30~80W
Input Voltage : 85-265V
Frequency : 50~60Hz
Power Factor 0.95
LED Chip Brand Lumileds
Ex-mark Ex de IIC T6 Gb
IP Rating IP65/IP66
Protection Grade WF2
CRI Ra>85
Light Efficiency ≥120lm/W
Ambient Temp -55°C~+60°C
Service Life >50000H
