Dinity – LED Explosion Proof Lighting

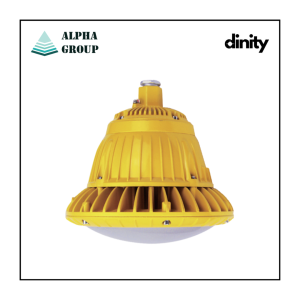

BAT95-N40 Series LED Explosion Proof Light

Description Product

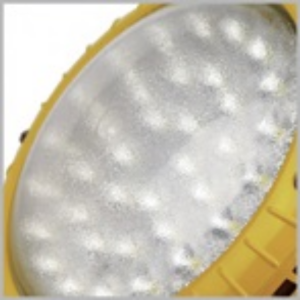

  • The light transmissive surface is made of 8mm thick high strength tempered glass;
  • The aluminum substrate adopts imported insulation layer from Taiwan, and the thermal conductivity is higher;
  • The lamp beads are made of Lumileds chip;
  • Built-in high performance waterproof driver power supply, with lighting protection, surge protection, short circuit protection,
    over voltage protection, over current protection;

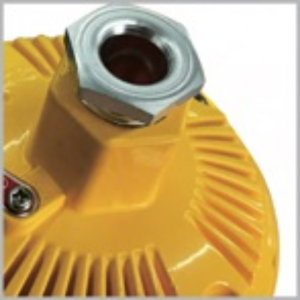

  • The diameter of the outlet is G3/4, and the wire sleeve is made
    of high temperature resistant silicone material. It will not deform after long-term compression, and will not harden, ensuring long-lasting effective flameproof performance.

Spesification

Model Power Product Size(mm) Weight
H L W
BAT95-N 40/60W 258 233 233 4.8
BAT95-N 70/120W 258 233 233 5.9

Technical Parameters

Product Power : 20~70W
Input Voltage : 85-265V
Frequency : 50~60Hz
Power Factor : 0.95
LED Chip Brand : Lumileds
Ex-mark : Ex de IIC T6 Gb
IP Rating : IP65/IP66
Protection Grade : WF2
CRI : Ra>85
Light Efficiency : ≥120lm/W
Ambient Temp : -55°C~+60°C
Service Life : >50000H
