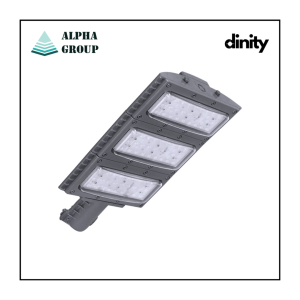

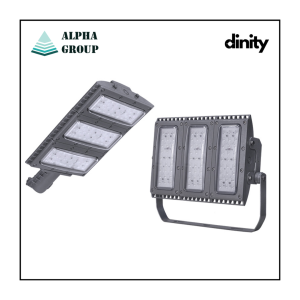

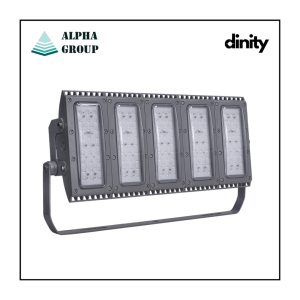

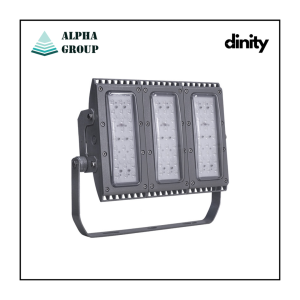

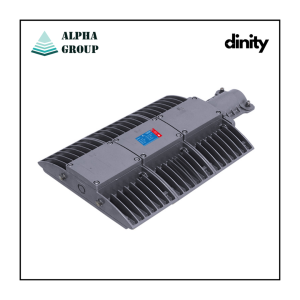

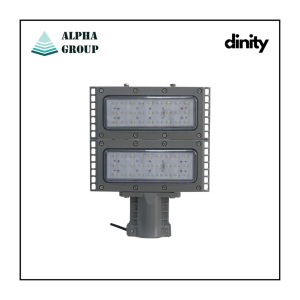

BAT95-E Series LED Explosion Proof Light
Description Product
- The shell is made of aluminum alloy high-pressure casting, the surface is shot-blasted by high-voltage electrostatic spraying,the explosion-proof level is high, and the appearance is light and beautiful
- The lamp adopts professional heat dissipation design structure to ensure the long life operation of the LED lamp
- Made of PC material with transparent cover, high light transmittance and strong impact resistance
- Adopting high -energy-saving LED light source ,Imported light source, green and environment protection ,with low energy consumption , Long life and maintenance-free.
Spesification
| Model |
Power |
Product Size(mm) |
Wight |
| H |
L |
W |
| BAT95-E |
50W |
300 |
135 |
100 |
3.5 |
| BAT95-E |
100W |
310 |
335 |
100 |
7.2 |
| BAT95-E |
150W |
310 |
550 |
100 |
11.4 |
| BAT95-E |
200W |
310 |
687 |
100 |
15.1 |
| BAT95-E |
250W |
310 |
685 |
100 |
18.6 |
Technical Parameters
| Product Power |
|
50-500W |
| Input Voltage |
: |
85-256V |
| Frequency |
: |
50~60Hz |
| Power Factor |
|
0.95 |
| LED Chip Brand |
|
Cree |
| Ex-mark |
|
Ex de II C T6 Gb |
| IP Rating |
|
IP65/IP66 |
| Protection Grade |
|
WF2 |
| CRI |
|
Ra>85 |
| Light Efficiency |
|
≥120lm/W |
| Ambient Temp |
|
-55°C~+60°C |
| Service Life |
|
>50000H |
